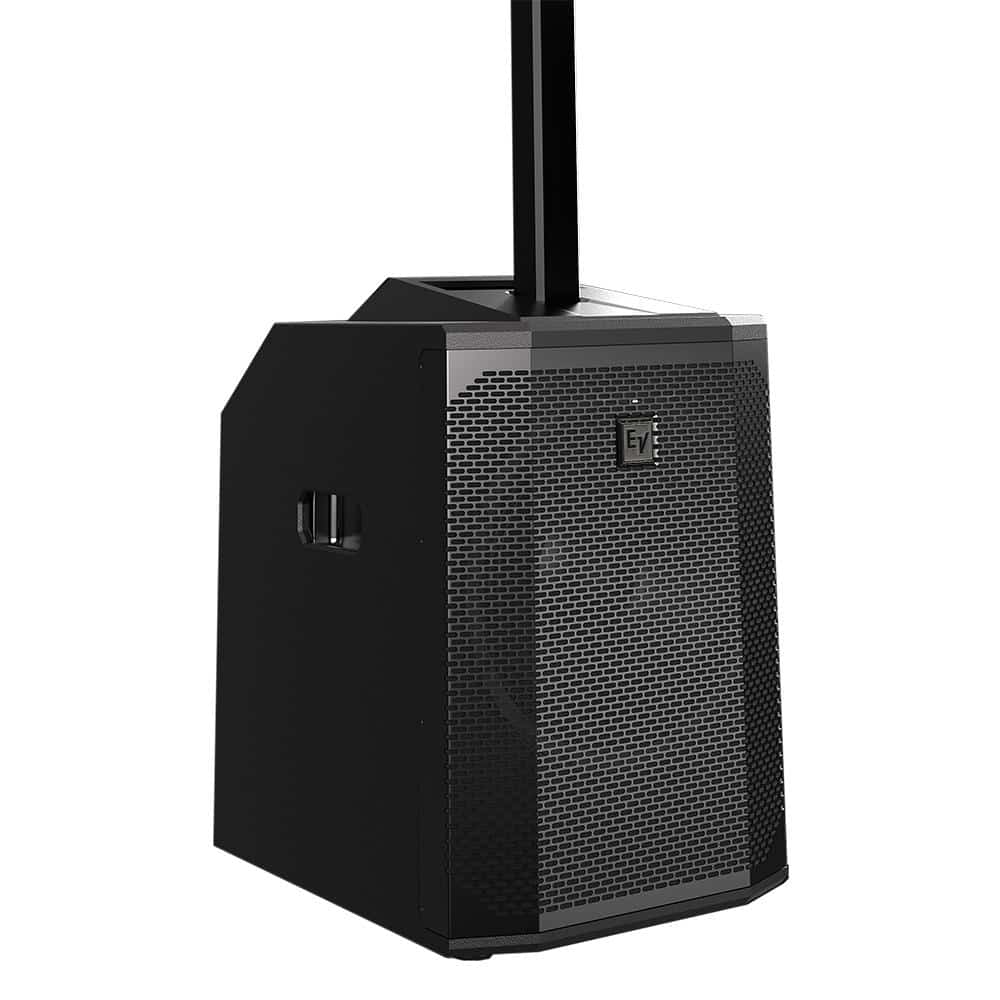

The EVOLVE 50 System with Bluetooth is a lightweight three-component portable loudspeaker system. Easily amplify your fitness rooms and more with this all-in-one speaker system. Easy setup: 3 pieces, 2 clicks, 1 system! Also available in
Product highlights:
- QuickSmartDSP provides best-in-class processing via EV's signature single-knob user interface with LCD.
- Easy setup via four presets (Music, Live, Speech, Club), three-band EQ (low, mid, high), five user-programmable presets
- Light weight and intuitive assembly via the magnet-assisted subwoofer pole make a quality performance easier than ever.
- High-quality Bluetooth® audio streaming for background music or musical
accompaniment. Bluetooth® connectivity is available in select countries. - Ultra-wide 120° horizontal coverage via custom-designed waveguides and array-formed 40° asymmetrical vertical coverage means all acoustical energy is directed toward both sitting and standing audiences.
Product specifications:
- Frequency response (-3 dB): 43 Hz-20 KHz
- Frequency range (-10 dB): 37 Hz-20 KHz
- Maximum SPL: 127 dB
- Coverage (H x V): 120° x 40°
- Amplifier rating: 1000 W
- LF channel rating: 500 W
- HF channel rating: 500 W
- Crossover frequency: 200 Hz
- Subwoofer Enclosure: 15mm plywood
- Column: Composite
- Pole: Aluminum
- Grille: Steel with black or white powder coat
- Color: Black
- Power consumption: 100-240 V AC, 50-60 Hz, 1.5-0.6 A
- Part#: F.01U.384.340
Connectors
- 2x XLR/TRS Combo Jack Input
- 1x 3.5 mm Input
- 1x Stereo RCA Input
- 1x Wireless Bluetooth® Audio Input
- 1x XLR THRU Output
- 1x XLR MIX OUT Output
Dimensions (HxWxD) and weight:
- Sub: 530 x 345 x 471mm (20.9 x 13.6 x 18.5")
- Column: 825 x 102 x 172mm (32.5 x 4.0 x 6.9")
- Pole: 929 x 48.5 x 55mm (36.6 x 1.9 x 2.2")
- Subwoofer Net Weight: 44.66 lb (20.3 kg)
- Column Net Weight: 10.34 lb (4.7 kg)
- Pole: 2.75 lb (1.25 kg)
- Subwoofer cover: 0.9 lb (0.4 kg)
- Bag for column and pole: 1.87 lb (0.85 kg)
- Shipping weight - Sub box: 50.71 lb (23 kg)
- Column box: 18.30 lb (8.3 kg)
