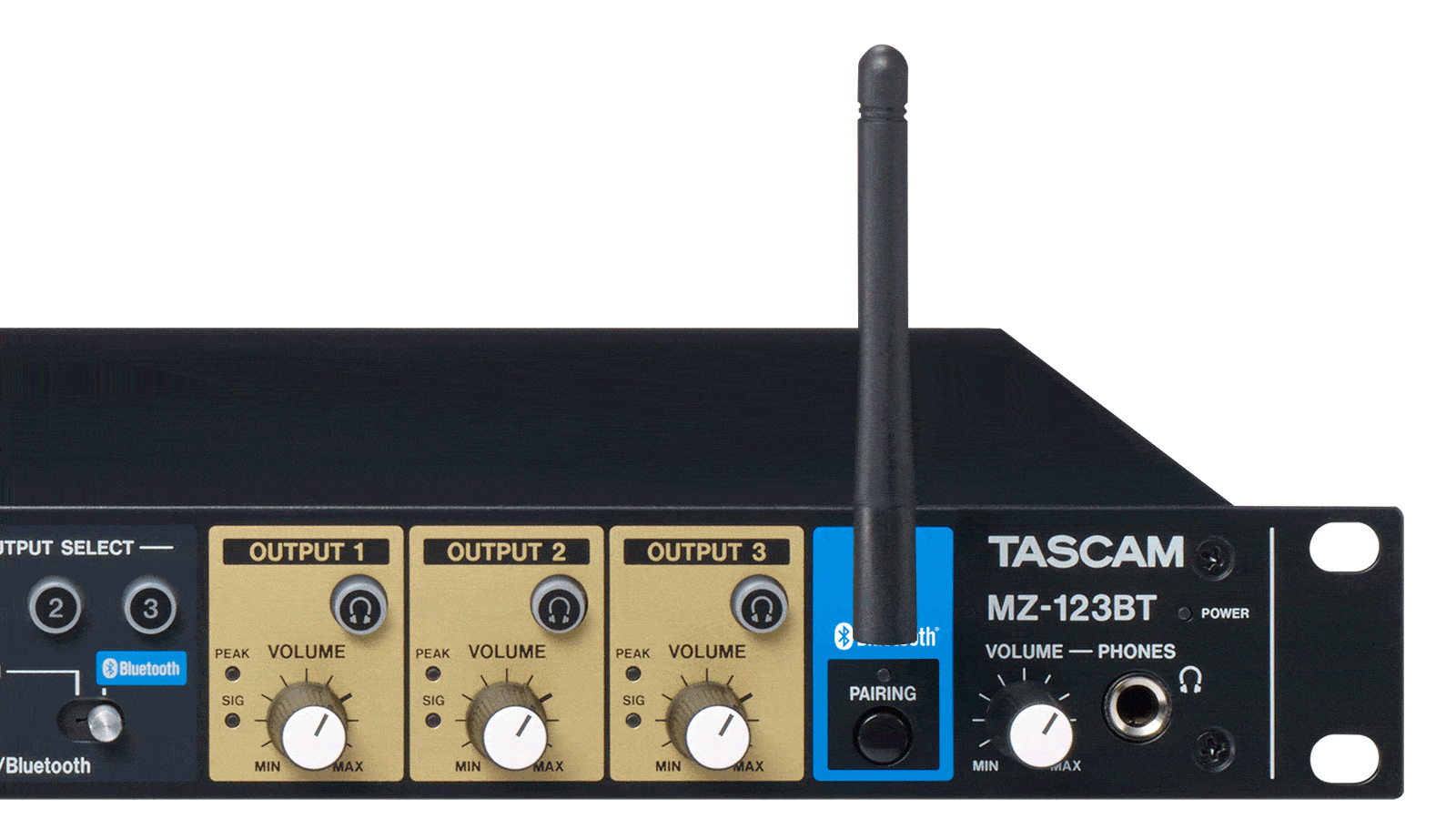

The TASCAM MZ-123BT is a compact 1U multi-channel, professional zone mixer with Bluetooth. It features versatile routing, mixing and distribution of up to three channels of independent music and voice, perfect for running specific programming and announcements to different zones in your club. The simple design features an intuitive layout for ease of operation.
The MZ-123BT is Bluetooth enabled, has 3 music inputs, 2 mic inputs and adjustable attenuation of background music for better intelligibility during announcements or paging. For ultimate convenience, there are front panel ‘AUX in’ and microphone inputs. EQ and gain threshold controls are located on the back panel, lessening the possibility of mis-adjustment by staff members.
Compact 1U Rack Mount Size
The 1U rack mount size MZ-123BT is designed to fit seamlessly in an installed AV rack, with an optimized depth that allows greater connection space for integrated AV equipment such as TASCAM CD/Solid State Players.
Features at a glance:
- Input Channel sources can be easily assigned to each of the individual 3 Zone Outputs
MONO/STEREO select switch on each Output Channel (*1)
Euroblock connectors provide seamless connection and configuration in fixed installations
- 3 Input Channels
Channel 1 : LINE input (RCA, Unbalanced)
Channel 2 : LINE input (RCA, Unbalanced)
Channel 3 : Bluetooth® / 3.5mm (1/8") AUX input (*2)
- 2 MIC inputs for announcements or Talk Over
Individual +48V phantom power switch on each channel
3 band EQ and High Pass Filter for adjusting Input Channel signal tone and quality
MIC 1 connection available via a front panel XLR/TRS combo jack or rear panel Euroblock connectors
- Talk Over feature enables automatic background music volume attenuation in desired Zone when mic audio is detected
- Headphone jack enables monitoring of each output channel
- Compact 1U rack-mount size
(*1) Stereo input sources will be mixed to monaural when output is set to MONO.
(*2) Source selection either via AUX input or Bluetooth® during operation.
