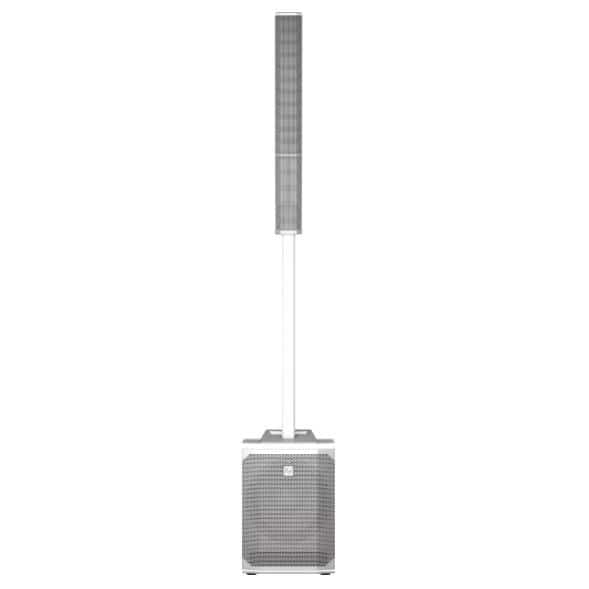

The EVOLVE 50 System with Bluetooth is a light-weight three-component portable loudspeaker system. Easily amplify your fitness rooms and more with this all-in-one speaker system. Easy setup 3 pieces, 2 clicks, 1 system!
Product highlights:
- QuickSmartDSP provides best-in-class processing via EV's signature single-knob user interface with LCD.
- Easy setup via four presets (Music, Live, Speech, Club), three-band EQ (low, mid, high), five user-programmable presets (Store and Recall settings), output delay, phantom power, visual monitoring of limiter status, input level control and meters, and master volume control to optimize gain structure. Ideal for portable applications.
- Light weight and intuitive assembly via the magnet assisted sub pole make a quality performance easier than ever.
- EV QuickSmart Mobile application: quickly and wirelessly configure, control, and monitor up to six EVOLVE 50 systems simultaneously and receive immediate notification during critical performance conditions.
- High-quality Bluetooth® audio streaming for background music or musical
accompaniment. Bluetooth® connectivity is available in select countries. - Ultra-wide 120° horizontal coverage via custom-designed waveguides and array-formed 40° asymmetrical vertical coverage means all acoustical energy is directed towards both sitting and standing audiences.
Product specifications:
- Frequency response (-3 dB)1 43 Hz-20 KHz
- Frequency range (-10 dB)1 37 Hz-20 KHz
- Maximum SPL2 127 dB
- Coverage (H x V) 120° x 40°
- Amplifier rating 1000 W
- LF channel rating 500 W / HF channel rating 500 W
- Crossover frequency 200 Hz
- Enclosure Sub: 15 mm plywood
- Column: Composite
- Pole: Aluminum
- Grille Steel with black or white powder coat
- Color: White
- Power consumption: 100-240 V AC, 50-60 Hz, 1.5-0.6 A

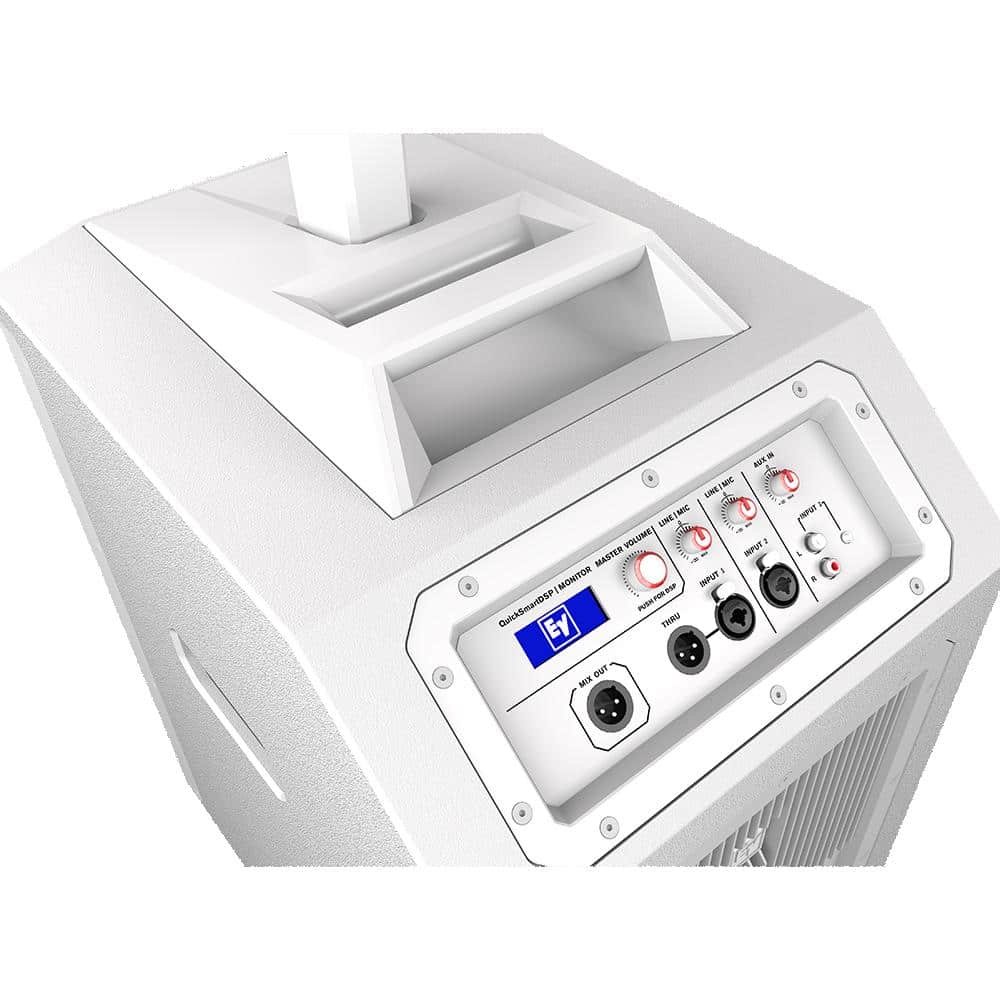

Connectors
- 2x XLR/TRS Combo Jack Input
- 1x 3.5 mm Input
- 1x Stereo RCA Input
- 1x Wireless Bluetooth® Audio Input
- 1x XLR THRU Output
- 1x XLR MIX OUT Output
Dimensions (HxWxD) and weight:
- Sub: 530 x 345 x 471 (20.9 x 13.6 x 18.5)
- Column: 825 x 102 x 172 (32.5 x 4.0 x 6.9)
- Pole: 929 x 48.5 x 55 (36.6 x 1.9 x 2.2)
- Net weight Sub: 44.66 lb (20.3 kg)
- Column: 10.34 lb (4.7 kg)
- Pole: 2.75 lb (1.25 kg)
- Sub cover: 0.9 lb (0.4 kg)
- Bag for column and pole: 1.87 (0.85 kg)
- Shipping weight Sub box: 50.71 lb (23 kg)
- Column box: 18.30 lb (8.3 kg)
